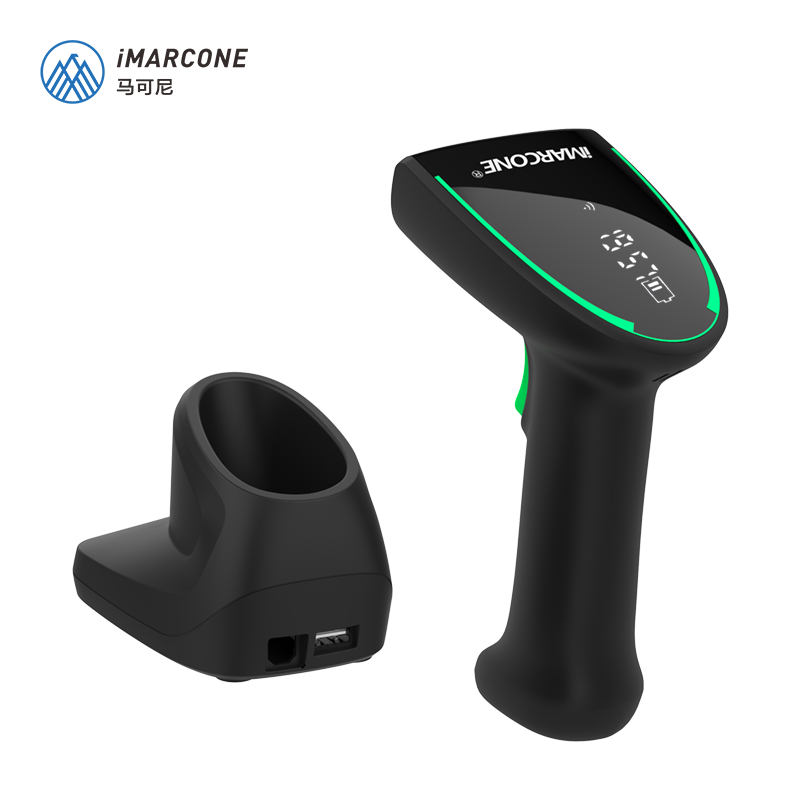

Model name： MC-3003HRB

Light source type

Red LED aiming light, white LED illumination light

                                Decoding ability

1D: Code128, Code39, Code93, Code49, Code 11, EAN13, EAN8, UPC_E(E0,E1), ISBN13,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, RSS14(GS1Databar),
RSS Limited(GS1 Databar Limited), RSS Expanded(GS1 Databar Expanded),
RSS14 Stack(GS1 Databar Stack), RSS Expanded(GS1 Databar Expanded Stack),
Codebar, MSI Plessey, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K,  Code49, GS1 Composite

2D: QR Code(Mode1,Mode2), MicroQR, Data Matrix, PDF417, Micro PDF417,
Aztec, HanXin, Maxicode, Grid Matrix Code

Scanning principle

CMOS

Resolution

640*480

Scanning mode

Manual mode/Automatic mode/Continuous mode

Scanning angle

Elevation ± 60 °, Rotation 30 °, Yaw ± 60 °

Scanning accuracy

1D: ≥3mil; 2D: ≥7.5mil

Depth of field

30-280mm(EAN13, 13mil)

Prompt method

Buzzer, LED, Vibration

Screen display

Digital screen (display: wireless connection, battery level, time)

Printing contrast

≥20%

Error rate

1/5 million

Wireless parameters

Wireless communication

2.4G+Bluetooth

Transmission distance

80 meters (Open Area)

Storage mode

Timely mode, inventory storage mode, (Storage capacity of 350000 characters)

Pairing mode

Receiver: one to one, many to one; Bluetooth mobile devices: one-to-one

Interface

USB-HID, USB-COM, RS232

Physical parameters

Weight

340g

Size

71mm*92mm*168mm

Material quality

ABS+PC

Cable length

1.5m

Environmental parameters

Working temperature

-10℃-60℃

Storage temperature

-20℃-70℃

Humidity

5% - 95% RH  (No condensation)

Shock resistance

Passed 1.5meters drop test

Electrical parameters

Voltage

DC5V±5%

Current

200mA

Battery capacity

2200mAh

Charging time

4h

Working hours

≈8h

Charging method

Magnetic charging base, Type-C
